    B300

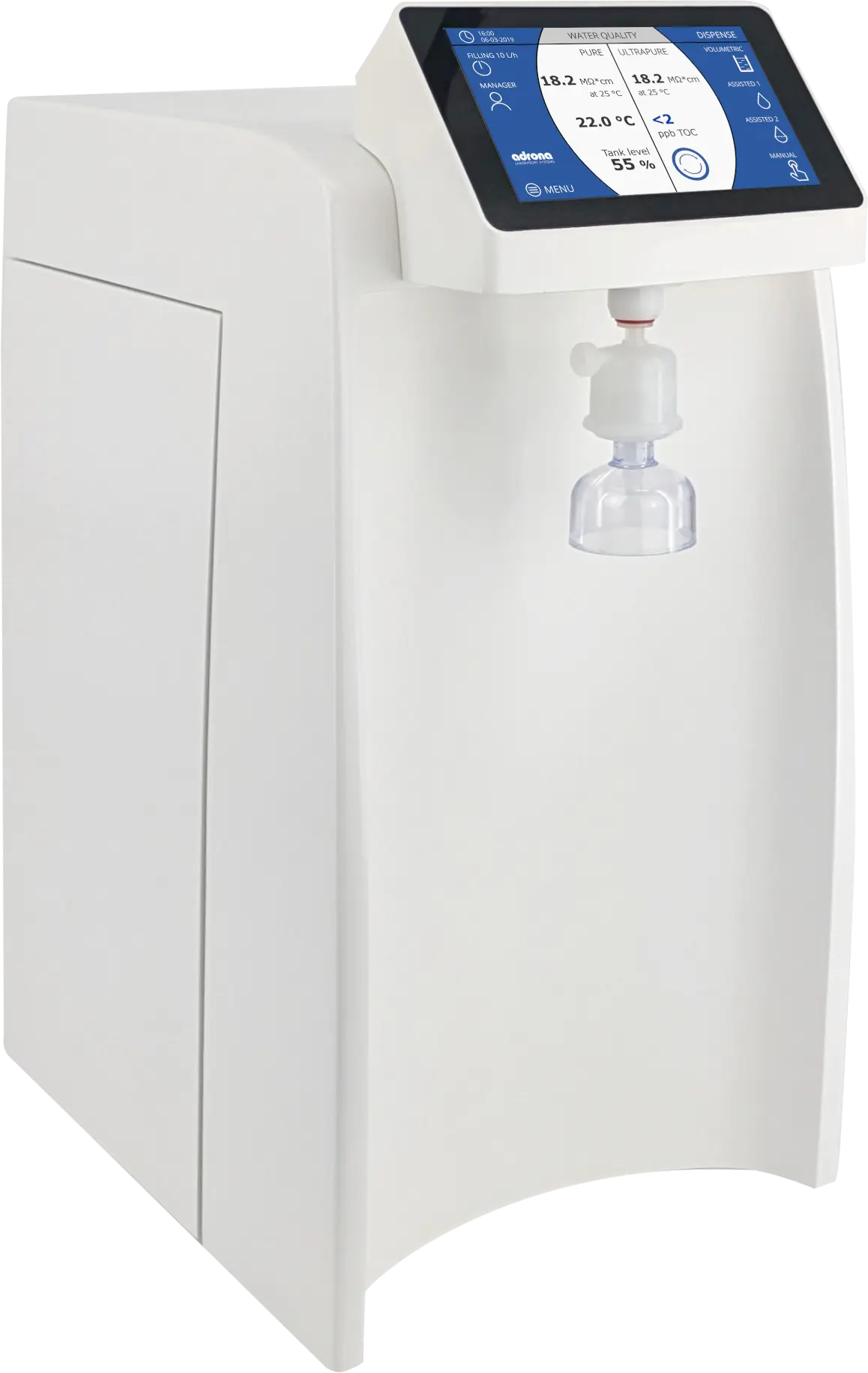

    Adrona B300 is ultrapure water purification system which requires external water tank that use tap water as feed water (tap water system). There are 3 variations available: B300 Trace, B300 HPLC, B300 Bio.

    The B300 is a new integrated Grade 2/ Grade 1 laboratory water system, replacing the customer-approved previous B30 model.

    The B300 has completely new electronics and software, providing a number of additional features: large colour touch screen, data logging capability, warning and alarm messages, a wide range of flow control options, the ability to connect multiple remote dispensers, Ethernet and USB interfaces, dispense report preparation, improved accuracy of conductivity and TOC measurements.

    FEATURES

    SPECIFICATION

    CONSUMABLES

    KEY FEATURES:

    • Extensive flow control options
    • Dispense report preparation
    • Improved measurement accuracy
    • Convenient 7-inch colour touch screen
    • Data logging option
    • Ethernet & USB interfaces
    APPLICATION
    TRACE
    HPLC
    BIO
    Reagent preparation
    *
    *
    *
    Flame AAS
    *
    *
    *
    Autoclaves
    *
    *
    *
    ICP-MS
    *
    *
    *
    ICP-OES
    *
    *
    *
    Ion chromatography
    *
    *
    *
    Liquid chromatography (HPLC)
    *
    *
    Gas chromatography
    *
    *
    TOC measurements
    *
    *
    Flow cytometry
    *
    Cell and tissue culture
    *
    Molecular biology
    *

    FEED WATER REQUIREMENTS:

    • Feed water: Potable tap water
    • Pressure: 0.4–6.0 bar
    • Conductivity: <2000 μS/cm
    • Temperature: 5–35 °C

    If the feed water does not meet specifications, additional pre-treatment solutions are available.

    Parameters
    Trace
    HPLC
    Bio
    Catalogue No.
    CB-3301
    CB-3303
    CB-3305
    Package incl. storage tank
    CB-3301-P
    CB-3303-P
    CB-3305-P
    Grade 1 water resistivity at 25 °C
    18,2 MΩ x cm
    18,2 MΩ x cm
    18,2 MΩ x cm
    Grade 1 water conductivity at 25°C
    0,055 μS/cm
    0,055 μS/cm
    0,055 μS/cm
    Grade 2 water resistivity at 25 °C
    >10 MΩ x cm
    >10 MΩ x cm
    >10 MΩ x cm
    Grade 2 water conductivity at 25°C
    <0,1 μS/cm
    <0,1 μS/cm
    <0,1 μS/cm
    TOC level
    < 10 ppb
    < 5 ppb*
    < 5 ppb*
    Rnase
    -
    -
    < 1 pg/ml
    Dnase
    -
    -
    < 5 pg/ml
    Bacteria
    < 0,01 CFU/ml
    < 0,01 CFU/ml
    < 0,01 CFU/ml
    Endotoxins
    < 0,15 EU/ml
    < 0,15 EU/ml
    < 0,001 EU/ml
    Particles >0.22 μm
    < 1/ml
    < 1/ml
    < 0,05/ml
    Nominal flow, pure water (to storage tank)
    10 l/h
    10 l/h
    10 l/h
    Dispense rate, ultrapure water
    1,5–2 l/min.
    1,5–2 l/min.
    1,5–2 l/min.
    Volumetric dispense
    0,01–100 l**
    0,01–100 l**
    0,01–100 l**
    Dimensions (WxDxH), cm
    32x56x58
    32x56x58
    32x56x58
    System weight, kg
    27
    28
    29
    Operating weight, kg
    30
    31
    32

    * In appropriate operating conditions <2 ppb, otherwise normally <5 ppb
    ** Depends on the tank volume

    CONSUMABLES

    Part number
    Description
    Comments
    10319
    Pre-filter set
    10311
    Deionization Q w/ quick connectors
    10031
    Polishing Q w/ quick connectors
    10033
    Polishing QC w/ quick connectors
    10037
    Polishing QH w/ quick connectors
    10017
    Sterilization UV bulb
    For Bio configuration
    10018
    UV photooxidation bulb
    10013
    0.22 µm dispense microfilter, sterile
    For HPLC configuration
    10120
    Ultrafilter
    For Bio configuration
    410175
    UV bulb
    For automatic sanitization module
